The construction of the Tsing Ma Bridge, 1992-1997

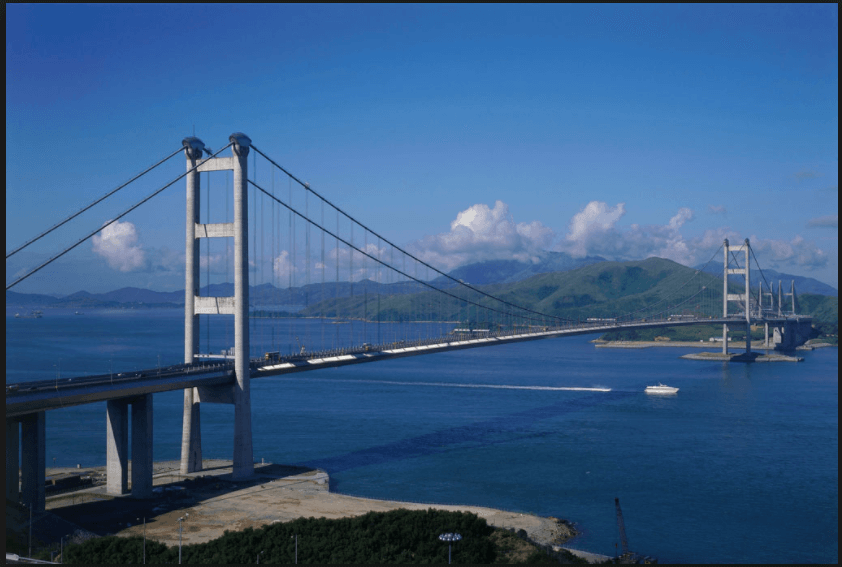

Tsing Ma Bridge Large Image Wikipedia

Source: Wikipedia

The Tsing Ma bridge in Hong Kong is the world’s 11th-longest span suspension bridge, and was the second longest at time of completion.[3] The bridge was named after two of the islands at its ends, namely Tsing Yi and Ma Wan. It has two decks and carries both road and rail traffic, which also makes it the largest suspension bridge of this type. The bridge has a main span of 1,377 metres (4,518 ft) and a height of 206 metres (676 ft). The span is the longest of all bridges in the world carrying rail traffic.

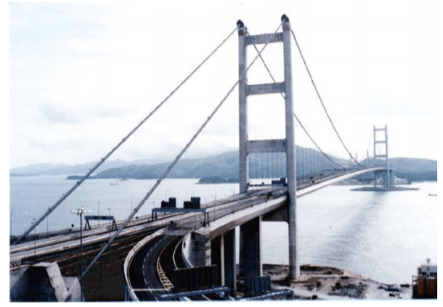

Tsing Ma Bridge Photo Of Heighways Dept Report

Source 2

The 41-metre-wide (135 ft) bridge deck carries six lanes of automobile traffic, with three lanes in each direction. The lower level contains two rail tracks and two sheltered carriageways used for maintenance access and traffic lanes when particularly severe typhoons strike Hong Kong and the bridge deck is closed to traffic.[4]

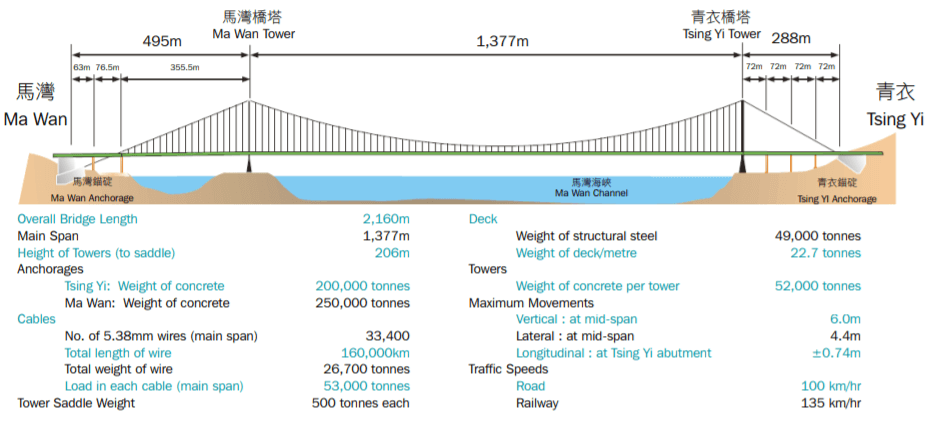

Tsing Ma Bridge Source Hghways Department PDF Report

Source 2

Details of the construction of the bridge can be found in the brief Highways Department report  and a City University article, the latter containing several photos of the bridge during its construction. Both are linked below.

Source:

  1. Tsing Ma bridge – wikipedia
  2. Tsing Ma bridge Highways Department report

See:

  1. Tsing Ma Bridge City University report
  2. Tsing Ma Bridge height debacle costing Hong Kong billions SCMP 17th June 2017
